Have you tried splitting surfaces in Creo?

In Creo, some shape surface sets that are selected for removal contain surfaces that are shared by shapes included in the surface set, and shapes that are not included in the surface set.

The system automatically splits these shared surfaces so that only the portions of the shared surfaces that belong to the selected shapes are removed. You have the option not to split the shared surfaces, and then the entire shared surface can be removed.

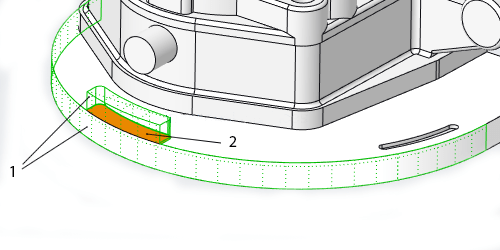

This pic shows surfaces of a boss that are selected for removal. One surface in the selected surface set is shared by the boss, and another shape

To split shared surfaces so that only the portions that belong to the selected shape are removed

1: Remove Surface > Options

2. Auto split shape surfaces check box

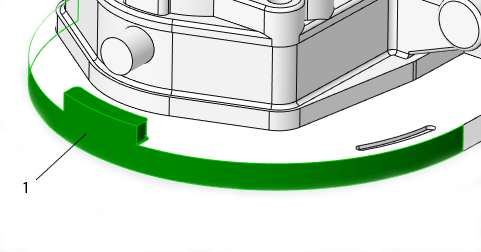

To remove the entire shared surface, including portions that do not belong to the shape to remove, clear the Auto split shape surfaces check box.

Continue reading…
