Have you tried Lines Anti-Aliasing in Creo?

Starting with Creo Parametric 5.0.0.0, there are 2 new options to control anti-aliasing of lines or text – Lines Anti-Aliasing and Text Anti-Aliasing

To turn On or Off these controls, just goto File > Options > Entity Display as shown below

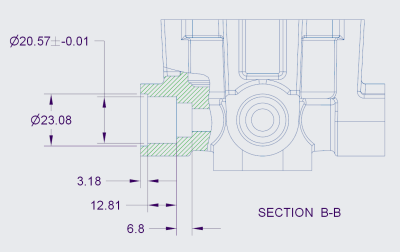

Below is an excerpt from PTC that shows how you can set Lines Anti-Aliasing to On even if the Anti-Aliasing is set to Off.

Notes about configuration options –

When text_antialiasing= YES this enables text anti-aliasing. The default value is NO

When drawing_aa= YES, this enables anti-aliasing in drawings. The default value is YES

About Punditas

Punditas delivers Artificial Intelligence(AI) driven content for PTC Creo Parametric and other Enterprise Application Softwares. Punditas AI engine taps into 100’s of internal & external repositories for Creo Parametric to Discover, Curate & Deliver pertinent Tips, Tricks, Tutorials, Best Practices, etc. up to 5 perspectives of content based on each Creo Users style and preference. To learn more about Punditas, visit https://www.punditas.com

Content source: PTC
