In the realm of design, adaptability is key, especially when it comes to modifying or applying new draft surfaces to existing models. Creo Parametric introduces a groundbreaking enhancement that addresses the challenge of changing draft angles in already drafted designs, including those with potentially rounded bases or imported models with drafted surfaces, rounds, and chamfers.
Creo Parametric’s enhanced capability allows users to easily change existing draft surfaces or apply new drafts to models that have already undergone drafting. This is particularly beneficial for models from the design department that are both drafted and potentially rounded-based, as well as imported models containing drafted surfaces, rounds, and chamfers.
The application’s flexibility shines through in its Draft Surfaces collector, where users can select surfaces as references even if drafts have been previously applied. Supported surface types include drafted analytical surfaces like cones and drafted ruled surfaces. The tool automatically detects the existing draft angle concerning the selected hinge and provides the draft angle dimension with the detected value.

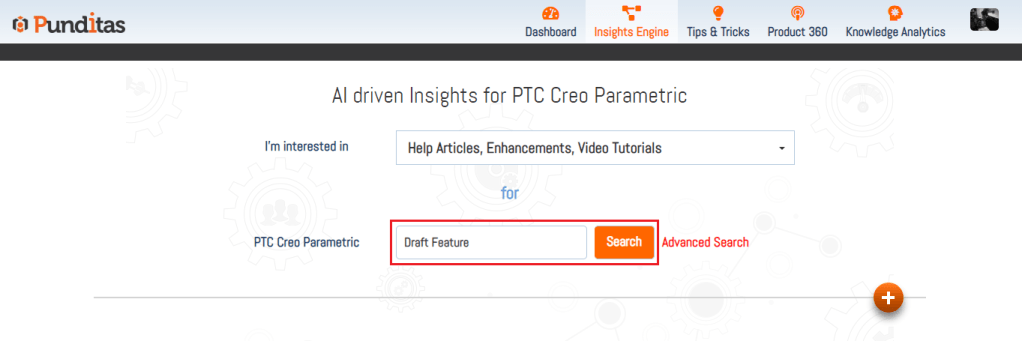

In the world of composite design and manufacturing, obtaining specific information can be a challenge. Punditas AI steps in as a user-friendly solution, leveraging its perspective-based system to transform the search experience. By systematically organizing Creo-related data from reputable sources, Punditas AI ensures that users can efficiently navigate and access the information they need.
What is Punditas AI Advisor?
Punditas AI Advisor provides real-time guidance as you work in the Creo environment. Information on “how to use” a feature in Creo or best practices for working with Creo are presented within context, removing the need to guess or search for such information. Punditas AI driven content helps you leverage Creo to create your designs faster and with confidence.
For more information about Punditas AI Advisor, visit our website at Punditas AI or contact us at contact@punditas.com
