Creo Parametric Tip#2: Improved visibility of objects in the graphics window

There are new configuration options for displaying or controlling the appearance of dimensions in Creo Parametric 6.0.0.0 release

Use the below configuration options to control the appearance of background for dimensions

1. dim_background
2. dim_background_color
3. dim_background_trans
A semi-transparent dimension background is set by default. This makes it easier to see and decipher dimension information in the graphics window for low contrast situations.
To set the default values for dimension display, background color, and transparency,  Goto  File —> Options —> Entity Display

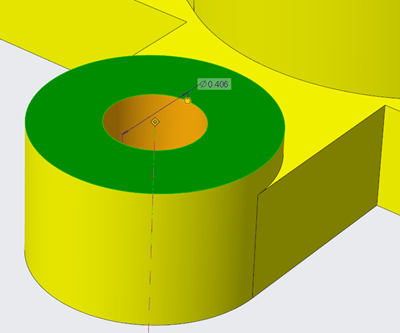

Enhanced Display of Objects in the Graphics Window1

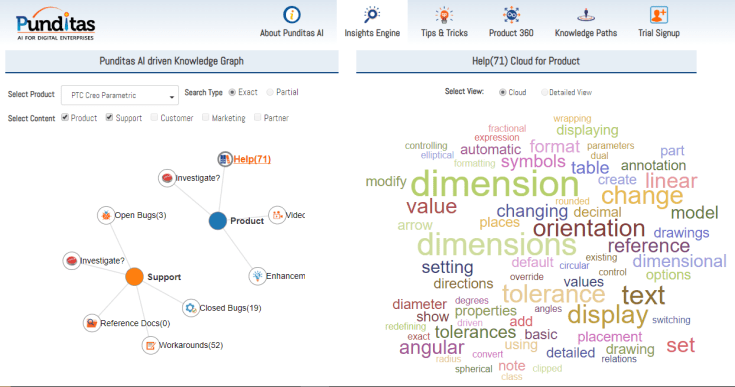

Punditas AI Advisor for Creo is a Knowledge-Centric system that automatically taps into 100’s of internal & external Creo Parametric repositories to Discover, Curate & Deliver pertinent Tips, Tricks, Tutorials, Best Practices, etc. up to 12 dimensions of content for Creo Users.
For more information about Punditas AI Advisor, goto Punditas website here
