Creo Patterning

Mark Ganzer@Toro has done an excellent job covering Patterning in Creo – Basics, Performance & Tips in one his presentations. Here are some excerpts from his slide deck. Check out the Tips (below) in particular





















































About Punditas

Punditas delivers AI driven content for PTC Creo Parametric. Punditas AI engine taps into 100’s of internal & external repositories for Creo Parametric to Discover, Curate & Deliver pertinent Tips, Tricks, Tutorials, Best Practices, etc. up to 12 dimensions of content based on each Creo Users style and preference. To learn more about Punditas, visit https://www.punditas.com

Credits: Mark Ganzer@Toro

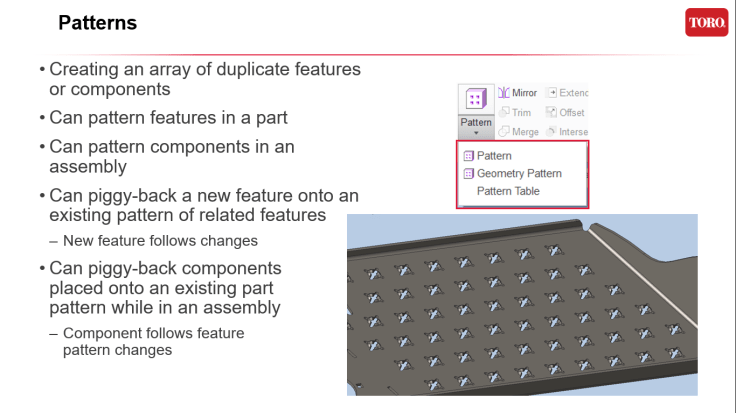

Source: https://portal.ptcuser.org/p/do/sd/sid=3061eating an array of duplicate features or components

Can pattern features in a part

Can pattern components in an assembly

Can piggy-back a new feature onto an existing pattern of related features

‒New feature follows changes

Can piggy-back components
placed onto an existing part
pattern while in an assembly

‒Component follows feature
pattern changes

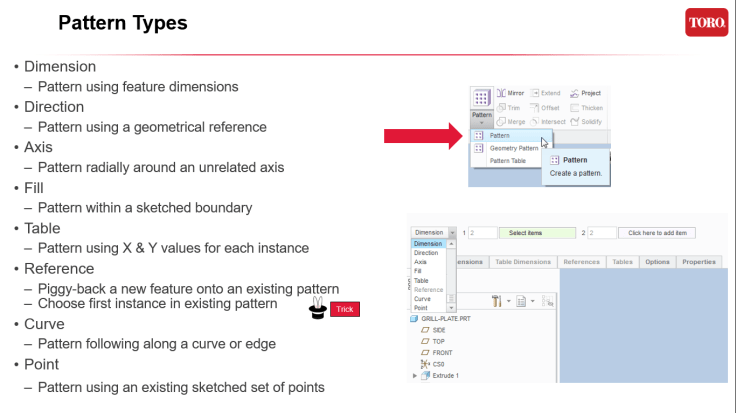

Dimension

‒Pattern using feature dimensions

Direction

‒Pattern using a geometrical reference

Axis

‒Pattern radially around an unrelated axis

Fill

‒Pattern within a sketched boundary

Table

‒Pattern using X & Y values for each instance

Reference

‒Piggy-back a new feature onto an existing pattern

‒Choose first instance in existing pattern

Curve

‒Pattern following along a curve or edge

Point

‒Pattern using an existing sketched set of points

Patterns selected geometry instead of features

‒Must be exact duplicates

Benefits

‒Faster than creating parent pattern and doing multiple reference patterns

‒Much faster to regeneration

‒Geometry patterns

Will work for collected geometry even when reference patterning will not work
