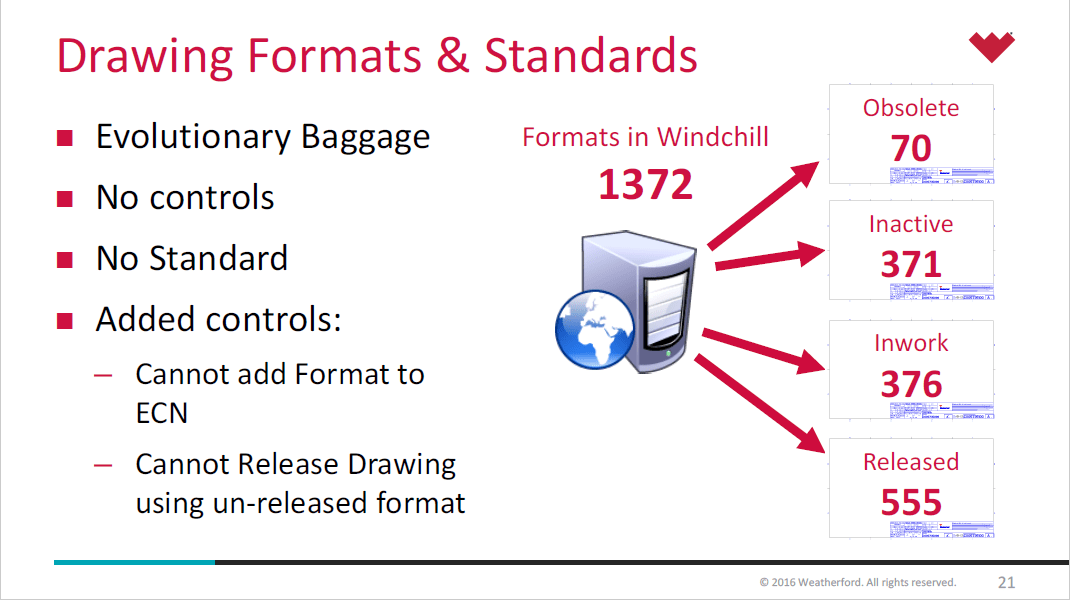

About Creo Drawing formats & Standards

Lewis Lawrence and William Friend from Weatherford, covered  Drawing Formats & Standards in one of their webinar. Here are some snippets from their presentation-

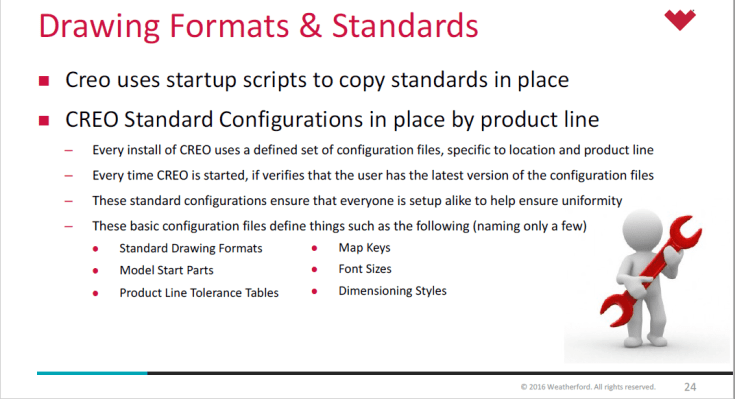

  • Creo uses startup scripts to copy standards in place
  •  Creo Standard Configurations in place by product line
  • Every install of Creo uses a defined set of configuration files, specific to location and product line
  • Every time Creo is started, if verifies that the user has the latest version of the configuration files
  • These standard configurations ensure that everyone is setup alike to help ensure uniformity
  • These basic configuration files define things such as the following (naming only a few)

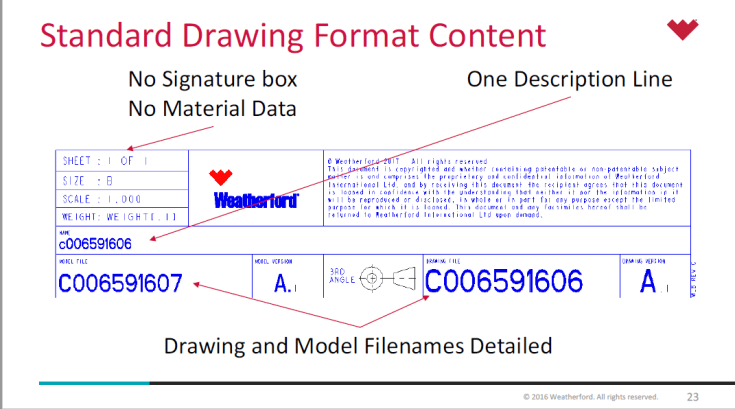

    Standard Drawing Formats

    • Model Start Parts
    • Product Line Tolerance Tables
    • Map Keys
    • Font Sizes
    • Dimensioning Styles, etc.































For more information, visit https://portal.ptcuser.org/p/do/sd/sid=2978

About Punditas

Punditas delivers AI driven content for PTC Creo Parametric. Punditas AI engine taps into 100’s of internal & external repositories for Creo Parametric to Discover, Curate & Deliver pertinent Tips, Tricks, Tutorials, Best Practices, etc. up to 12 dimensions of content based on each Creo Users style and preference. To learn more about Punditas, visit https://www.punditas.com



Credits: Lewis Lawrence &  William Friend@Weatherford

Source: https://portal.ptcuser.org/p/do/sd/sid=2978
