Did you know that applying drafts to models containing rounds and chamfers is vastly enhanced in Creo?

With Creo 5.0, PTC enhanced the ability to apply drafts to design models containing rounds and chamfers.

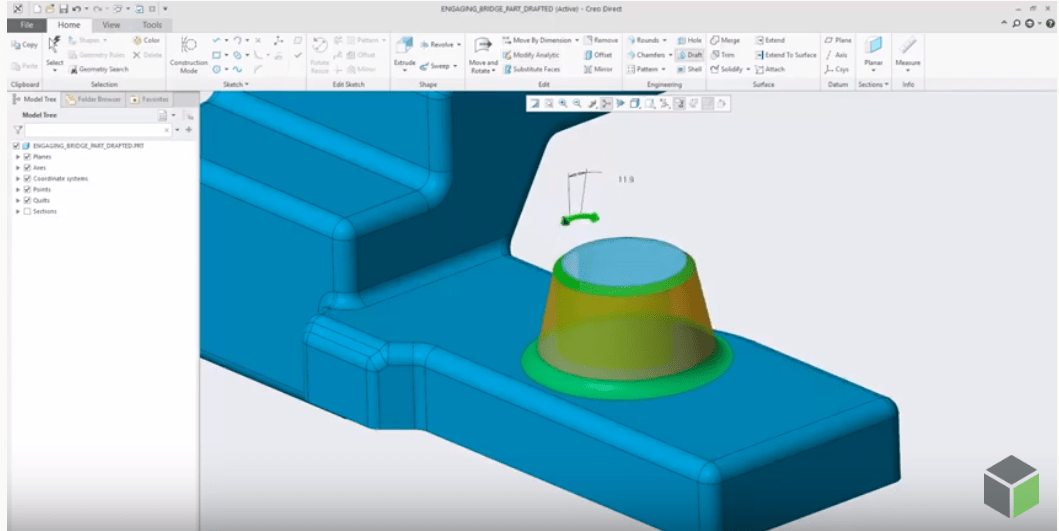

Select surfaces as references in the Draft surfaces collector of the draft feature. Rounds and chamfers are automatically detected and highlighted in a different color. Rounds and chamfers are then handled as they are in the Creo Parametric Flexible Modeling environment

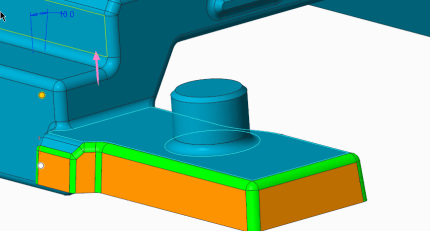

If the geometry selection contains inlying rounds, you can control their inclusion or exclusion from the draft operation. Exclude inlying rounds, and they appear in a green color and are treated as rounds.

Note:

This enhancement supports round and chamfer types that are currently supported within Creo Parametric Flexible Modeling.

Related Config options for Draft

  1. draft_tan_propagation_default—Determines if draft is automatically propagated along tangent surfaces. Values are yes or no. The default is yes
  2.  draft_preserve_inlying_rounds—Determines if inlying round and chamfer surfaces are preserved and not to be drafted. Values are yes or no. The default is no.

Check out this video to learn more

About Punditas

Punditas delivers Artificial Intelligence(AI) driven content for PTC Creo Parametric and other Enterprise Application Softwares. Punditas AI engine taps into 100’s of internal & external repositories for Creo Parametric to Discover, Curate & Deliver pertinent Tips, Tricks, Tutorials, Best Practices, etc. up to 5 perspectives of content based on each Creo Users style and preference. To learn more about Punditas, visit https://www.punditas.com

Content source: PTC
