What is Stiff Shrink Feature in PTC Creo?

A new Stiff Shrink feature has been added to Cabling with Creo 8.0.

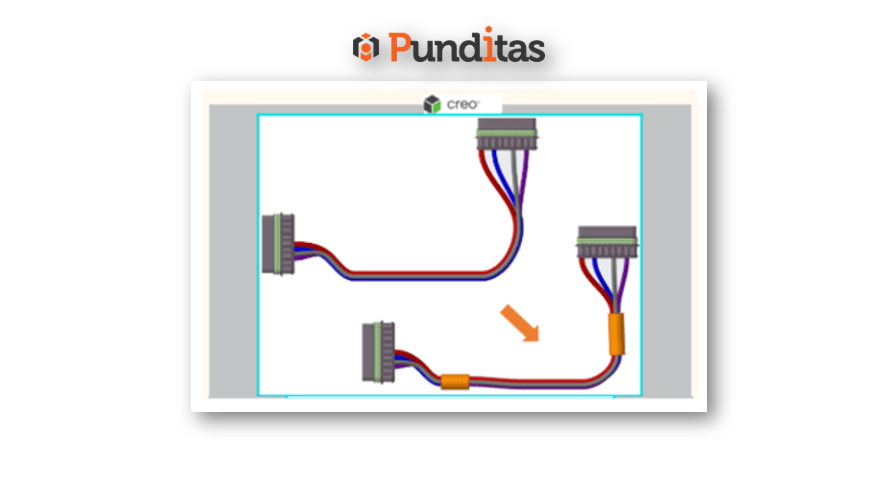

The Stiff Shrink sheath feature allows you to route multiple cables and wires through it. Unlike the Bundle feature, the Stiff Shrink feature does not bend and remains straight along its axis.

You can first create a Stiff Shrink feature by using coordinate system, and then route new cables through it. Alternatively, you can select an existing location, and then place a Stiff Shrink feature on all cables that go through that location.

User Interface: Click Cabling > Cosmetics > Stiff Shrink

Limitations :-

• Stiff shrinks cannot be created on entry ports.

• Stiff shrinks cannot be split or spliced.

• After you place stiff shrinks, their locations cannot be modified, and their segments cannot be rerouted. The position of a stiff shrink is driven exclusively by the associated coordinate system.

• Bundles cannot be created on top of the stiff shrinks.

To learn more about this enhancement, follow this link

Punditas AI Advisor for Creo

Punditas AI Advisor provides real-time guidance as you work in the Creo environment. Information on “how to use” a feature in Creo or best practices for working with Creo are presented within context, removing the need to guess or search for such information. Punditas AI driven content helps you leverage Creo to create your designs faster and with confidence. For example searching for “weld dashboard” in Punditas AI displays the following results –

Video Tutorials for Stiff Shrink Feature in Punditas AI

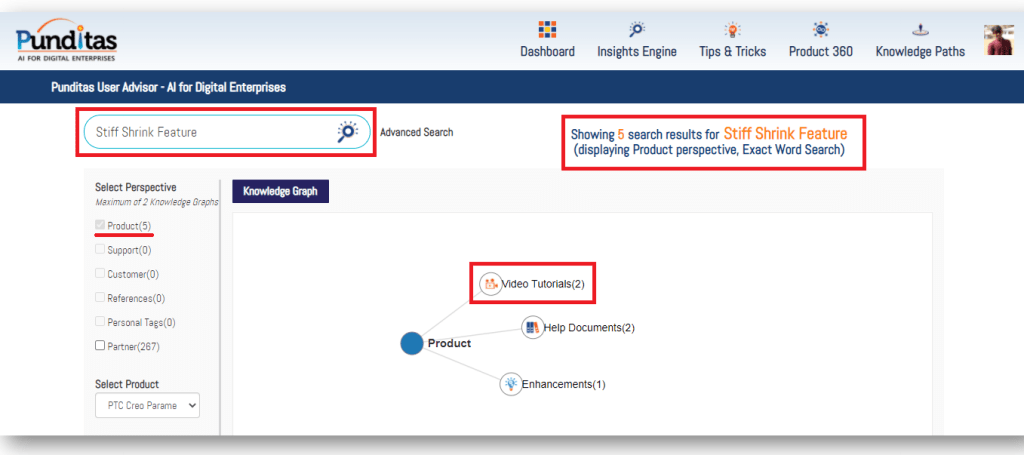

Video Tutorials – Punditas AI Knowledge Graph with Search Results

Video Tutorials – Detailed view of search results for Video tutorials

Help Articles for Stiff Shrink Feature in Punditas AI

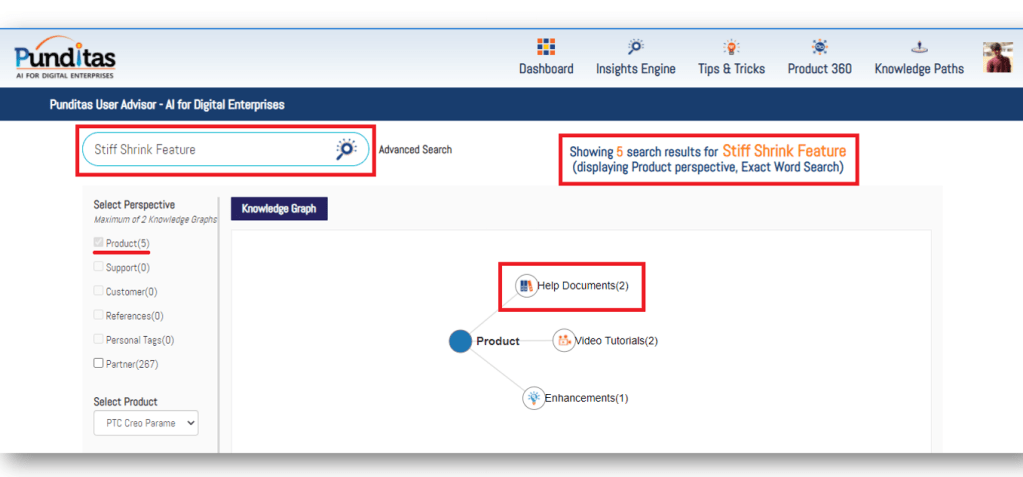

Help Articles – Punditas AI Knowledge Graph with Search Results

Help Articles – Detailed view of search results for Help Articles

Enhancements for Stiff Shrink Feature in Punditas AI

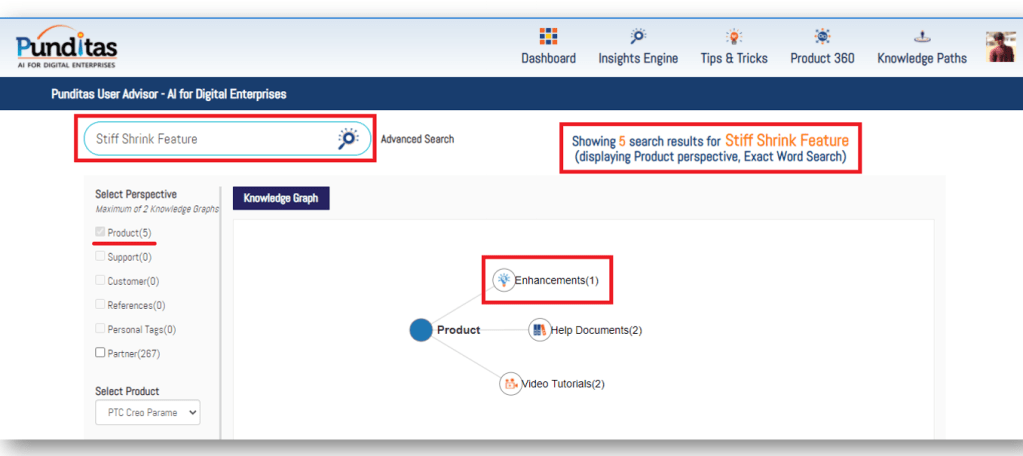

Enhancements – Punditas AI Knowledge Graph with Search Results

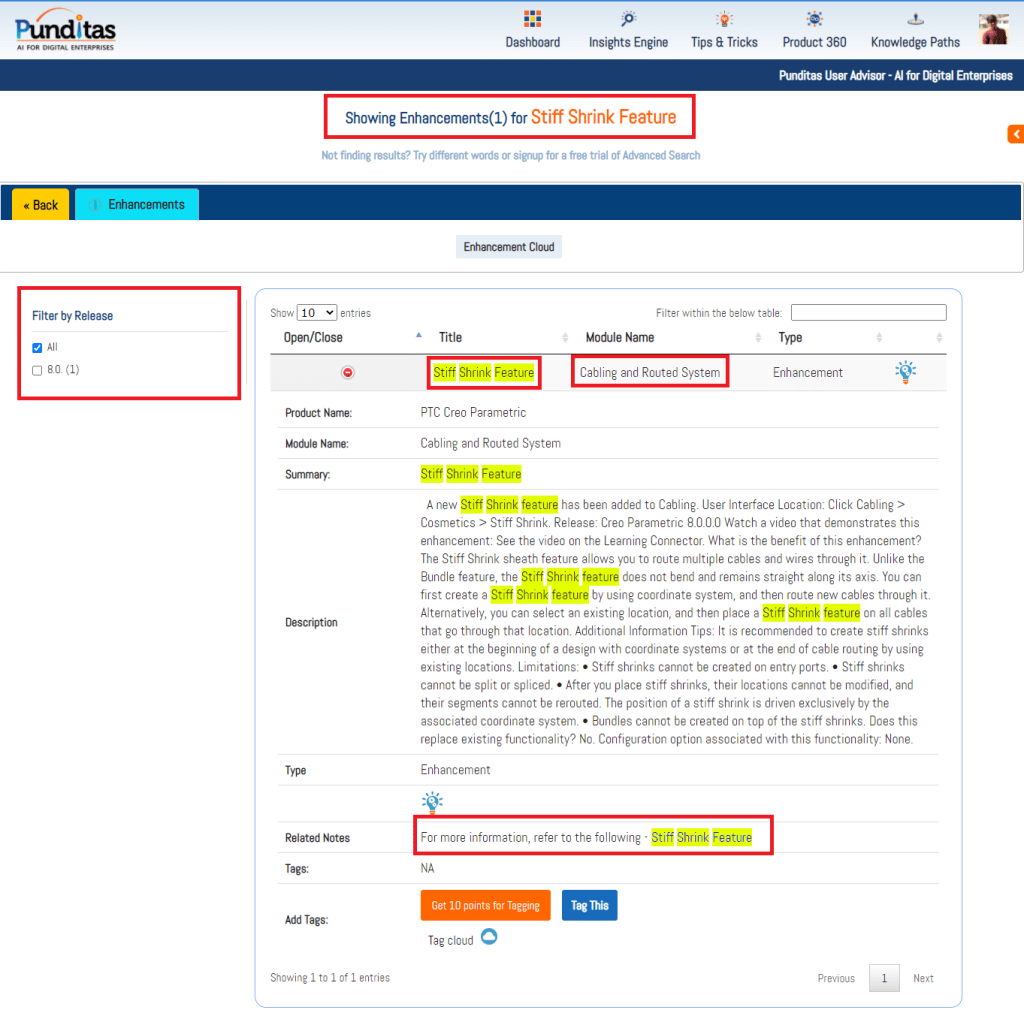

Enhancements – Detailed view of search results for Enhancements
