MBD essentials with Creo Parametric 5.0

Reason #1:

Conversion Tool for Legacy Set Datum Annotations in Model-Based Definition

There is a tool to convert legacy set datum annotations. The tool to convert legacy set datum annotations, guides you through the process of converting legacy set datum annotations created in Creo Parametric 3.0 and earlier, into the modernized datum feature symbols. The associativity to existing geometrical tolerances is maintained. Legacy set datum annotations are converted in the model and in the associated drawing.

Read More  :  3 reasons to consider Creo Parametric 5.0 for Model Based Definition

Reason #2:

Improved Undo and Redo Support in Model–Based Definition

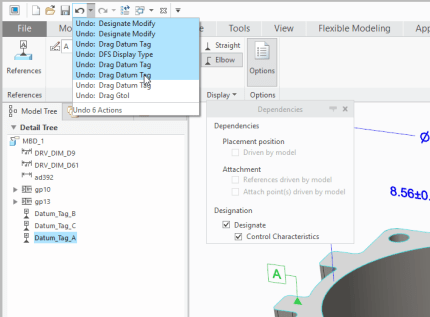

Support for Undo and Redo is significantly improved for standalone semantic annotation types, such as dimensions, geometric tolerances (GTOLs), datum feature symbols and datum targets. You can reliably and easily revert to previous work states during annotation creation and modification workflows.

Reverting to previous work states during standalone annotation creation and modification workflows is more reliable and easier. Undo and Redo for commands relating to standalone semantic annotation types is more robust. For example, you can use Undo and Redo when creating and deleting standalone annotations and performing graphical modifications such as movements. You can also use Undo and Redo when making semantic modifications, such as changing value and text fields, references, designation attributes, and so on.

MBD essentials with Creo Parametric 5.0





Punditas MBE Advisor

Punditas offer an end-to-end solution that automatically discovers pertinent information Punditas MBE Advisorand guides you along this journey.

Punditas MBE Advisor is a dedicated solution to Strategize–Roadmap-Educate-Track-Measure progress of your MBD and MBE initiatives.

This connected platform engages stakeholders across the enterprise and serves as a centralized repository powered by Knowledge & Expertise from internal experts as well the best minds around the world. Click here for more information about Punditas MBE Advisor
