How to quickly find similar geometric shapes and surfaces in Creo?

Starting with Creo Parametric 4.0, you can quickly find rounds, chamfers , sheet metal design objects from within a single, easy-to-use search tool. The Geometry Search tool allows searches based on geometry and design intent to Creo Flexible Modeling.

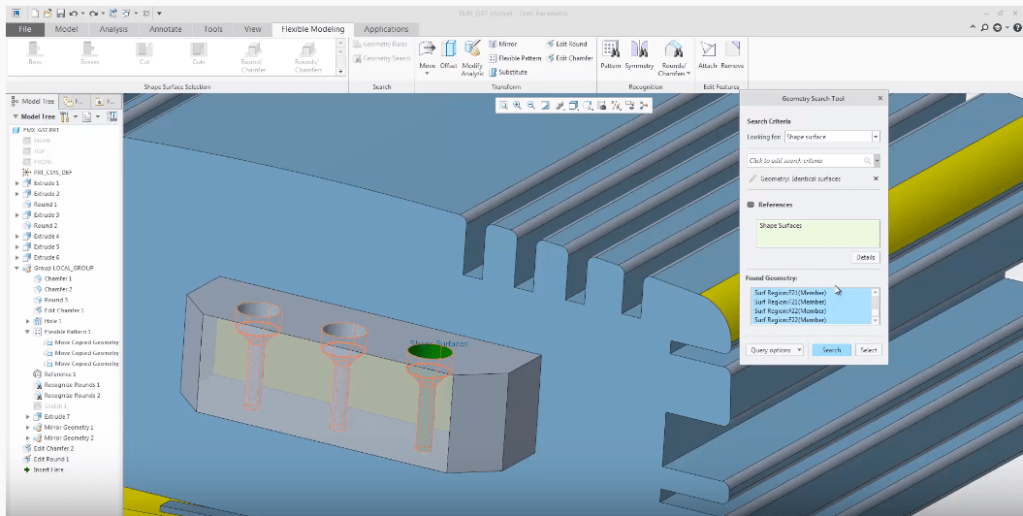

Searches can be based on a seed surface or be defined without a seed.

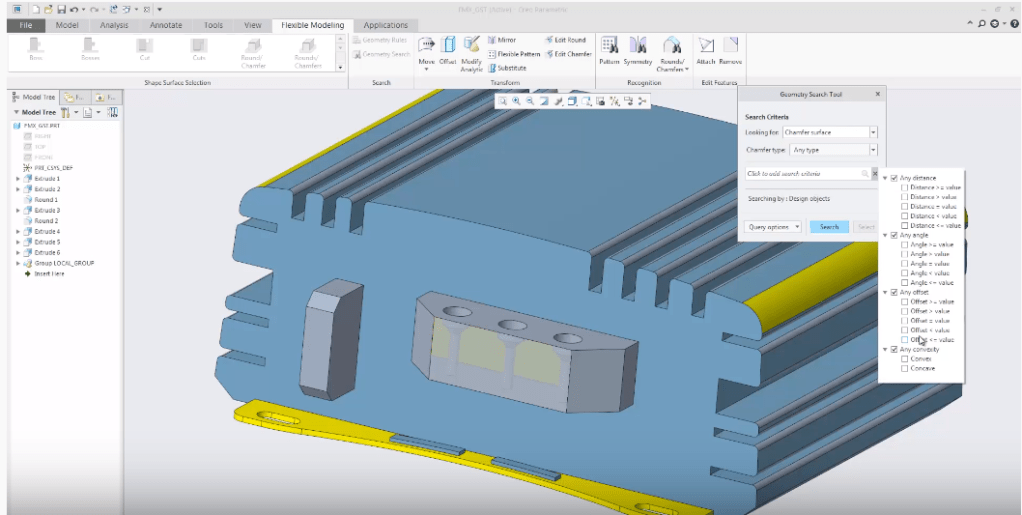

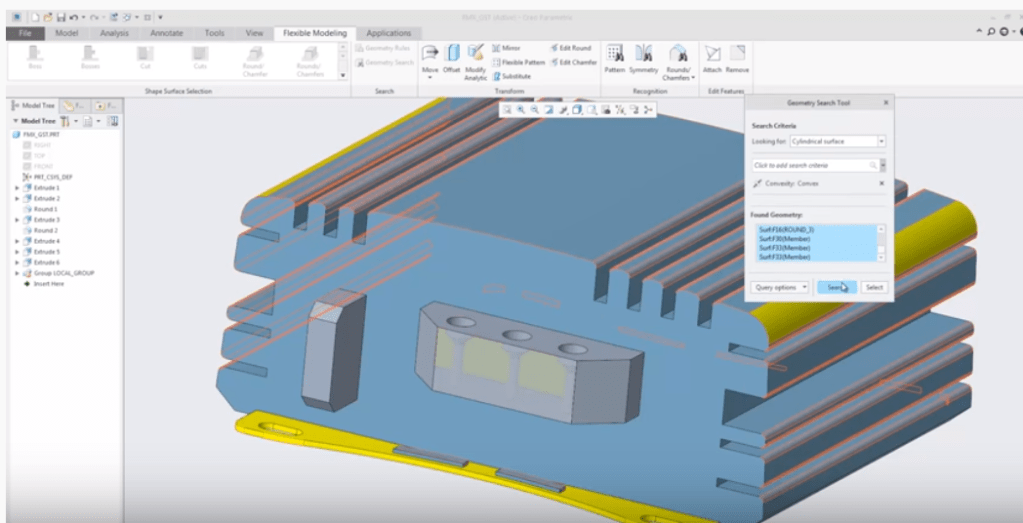

Search results appears in the Found Geometry list from which you can then make a final selection.

You can use the Geometry Search tool for selection before activating a tool (object/action workflow) or after activating a tool (action/object workflow).

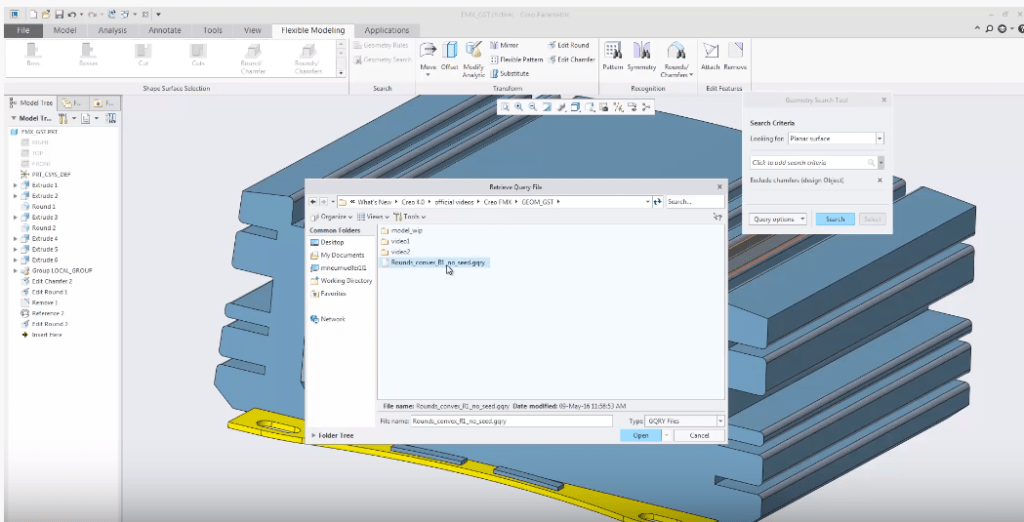

You can also save a query to file and load it back into the Geometry Search tool to use later.

Watch the video here
