Did you know about these MBD related checks in Creo?

With Creo 6.0, PTC has enhanced ModelCheck to include additional checks for tolerances, annotations, features, and combined states. For example –

Annotations that are not referencing any surfaces

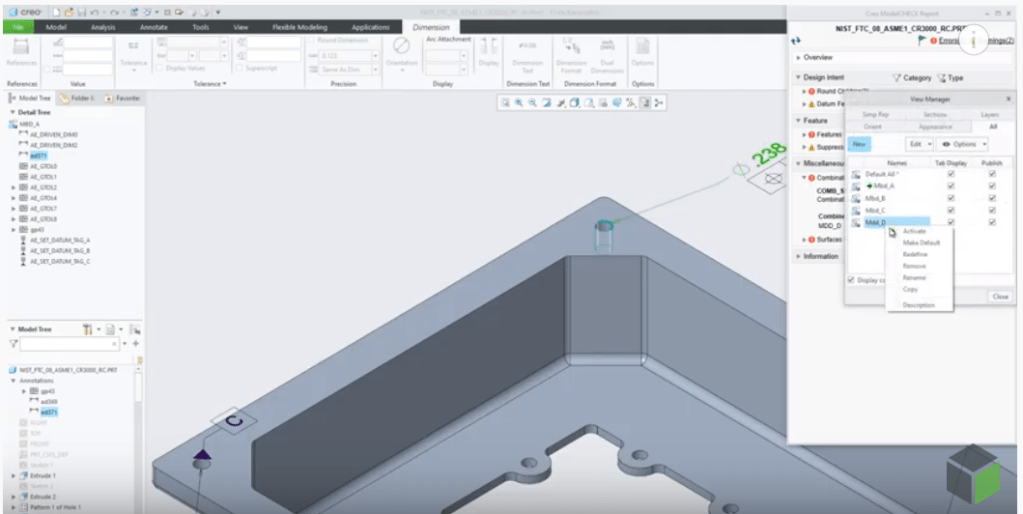

Annotations not included in any combined state

ModelCheck can identify any combined states that are not following the naming conventions within the user defined list of names

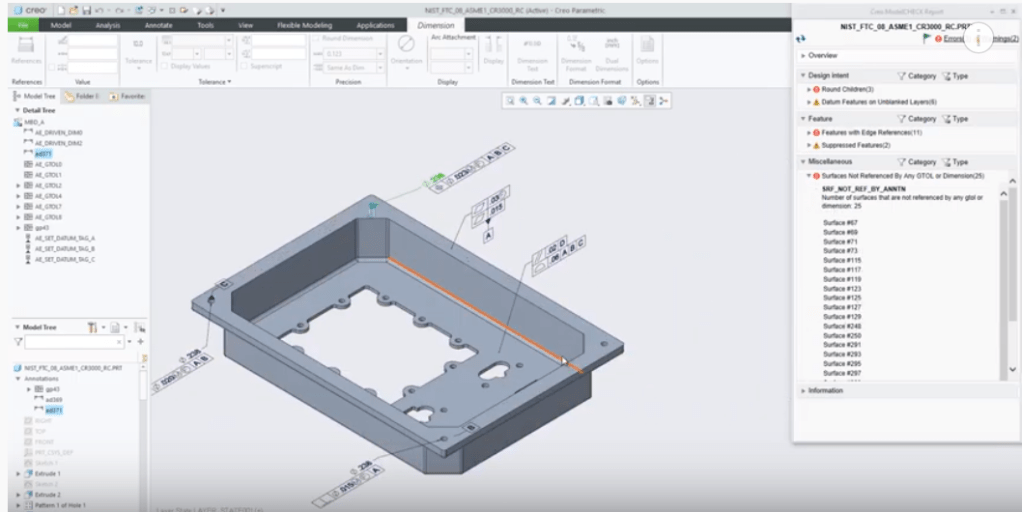

Surfaces not referenced by an dimension identified

For more information, check out this video and this article
