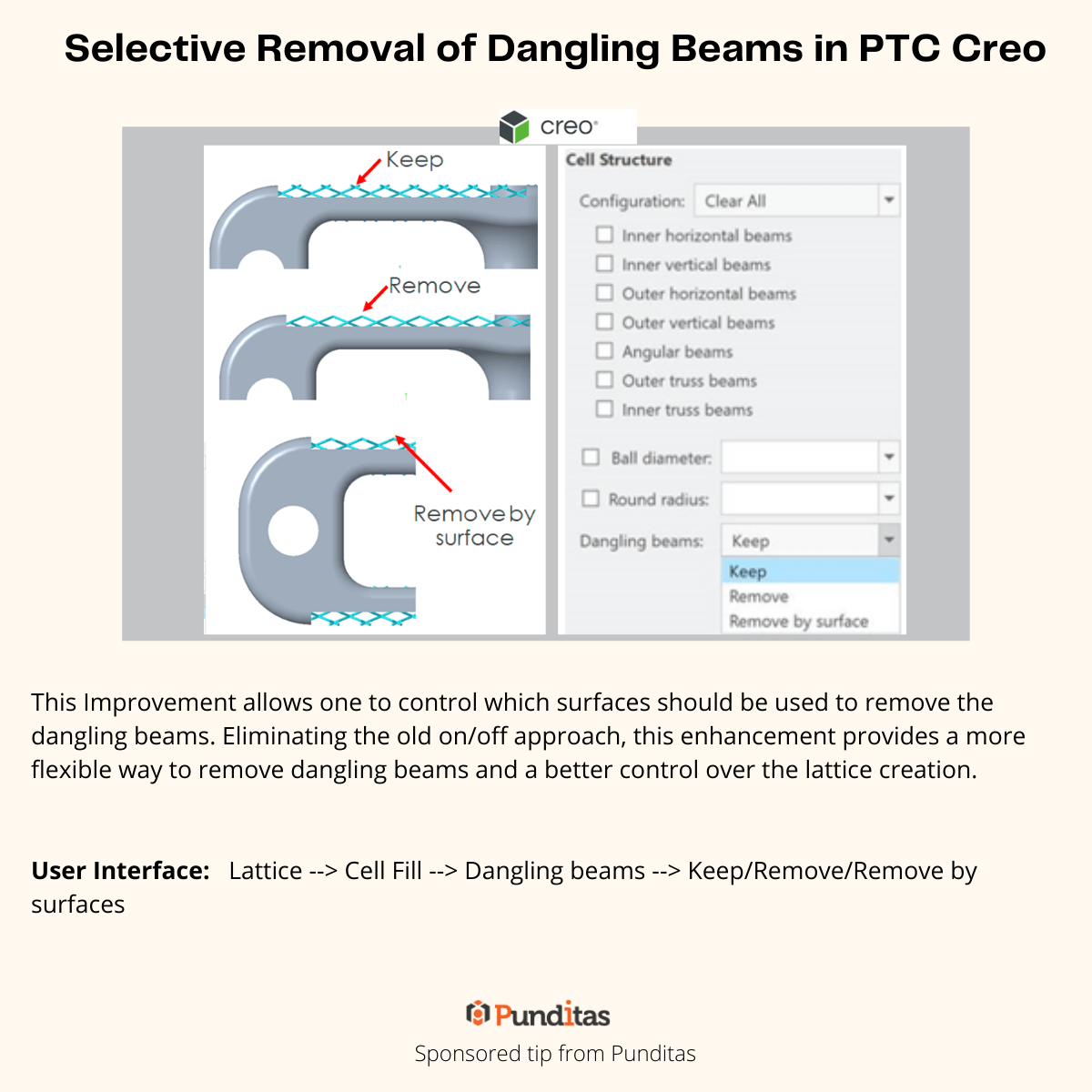

Selective Removal of Dangling Beams in PTC Creo

This Improvement allows one to control which surfaces should be used to remove the dangling beams. Eliminating the old on/off approach, this enhancement provides a more flexible way to remove dangling beams and a better control over the lattice creation.

User Interface: Lattice –> Cell Fill –> Dangling beams –> Keep/Remove/Remove by surfaces
