How to use the improved Freestyle Align Function in PTC Creo?

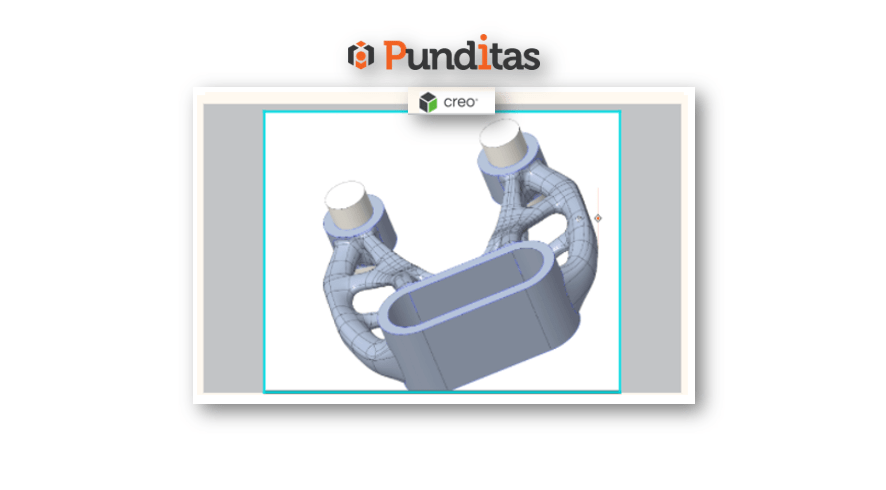

The Freestyle Align function has been improved, resulting in a higher quality surfaces.

Now the vertices no longer behave like a vertex creases by forcing the geometry vertices to align with the control mesh vertices. A geometry vertex position is determined by its location with respect to the align reference curve, resulting in an optimal smooth surface. This minimizes the geometry from overlapping with aligned curve that produces a concave shape.

This improves the overall quality of Freestyle surfaces aligned to reference curves.

This enhancement vastly improves the reconstruction process in Generative Design. It improves the overall quality of Freestyle geometry, resulting in a higher success rate for reconstruction and merging. It reduces potential high stress areas when analysed in simulation tools such as Creo Simulation Live.

User Interface: Click Freestyle > Align.

Punditas AI Advisor for Creo

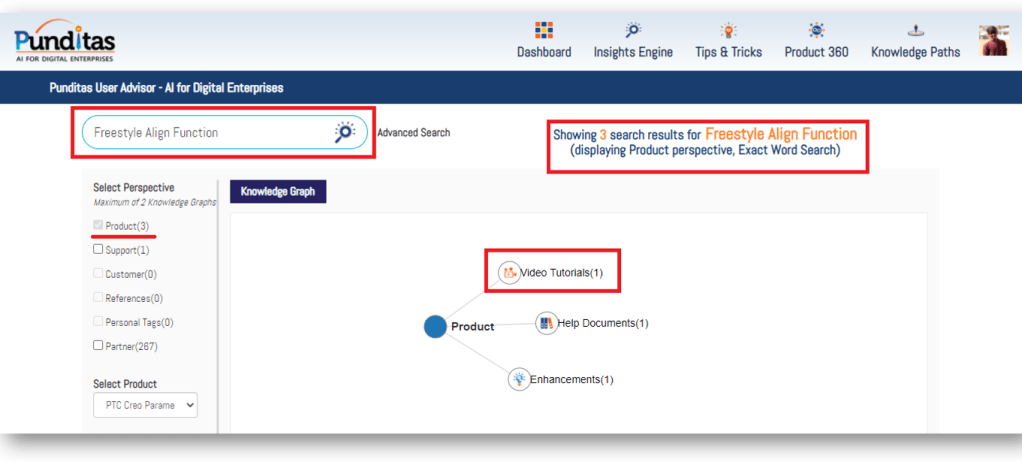

Punditas AI Advisor provides real-time guidance as you work in the Creo environment. Information on “how to use” a feature in Creo or best practices for working with Creo are presented within context, removing the need to guess or search for such information. Punditas AI driven content helps you leverage Creo to create your designs faster and with confidence. For example searching for “weld dashboard” in Punditas AI displays the following results –

Video Tutorials for Align Function in Punditas AI

Video Tutorials – Punditas AI Knowledge Graph with Search Results

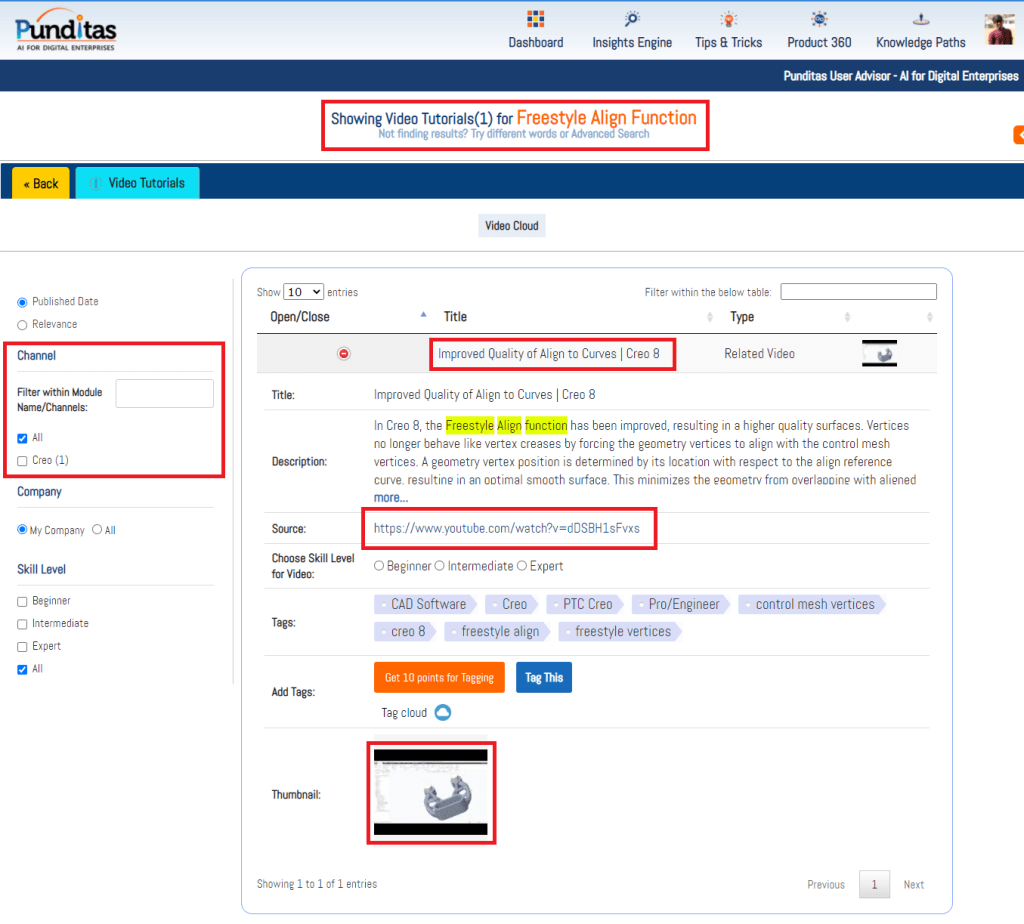

Video Tutorials – Detailed view of search results for Video tutorials

Help Articles for Align Function in Punditas AI

Help Articles – Punditas AI Knowledge Graph with Search Results

Help Articles – Detailed view of search results for Help Articles

Enhancements for Align Function in Punditas AI

Enhancements – Punditas AI Knowledge Graph with Search Results

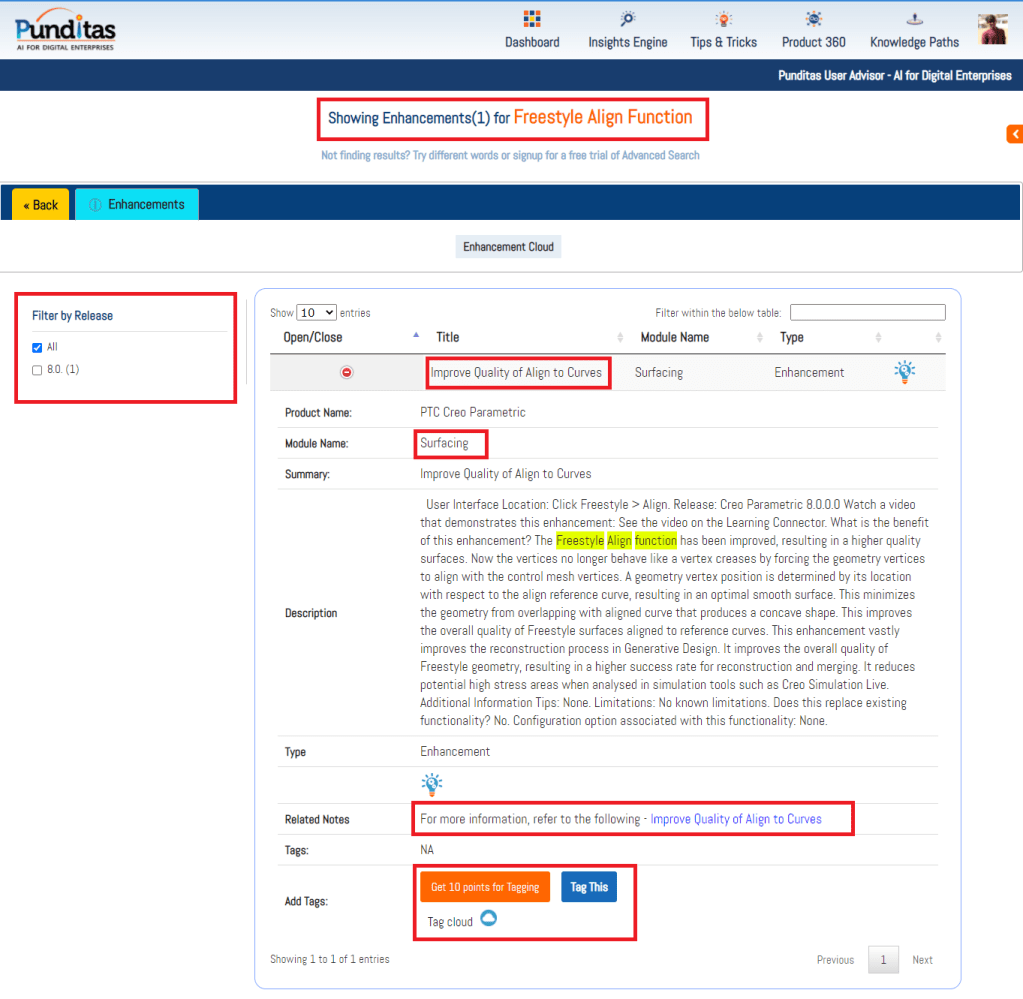

Enhancements – Detailed view of search results for Enhancements

Check out the Trial or Demo versions of Punditas AI

Demo version of Punditas AI

Signup for a Free Trial of Punditas AI

For more information about Punditas AI Advisor, visit our website at Punditas AI or contact us at contact@punditas.com
