Did you know about the newly added recursive references in PTC Creo?

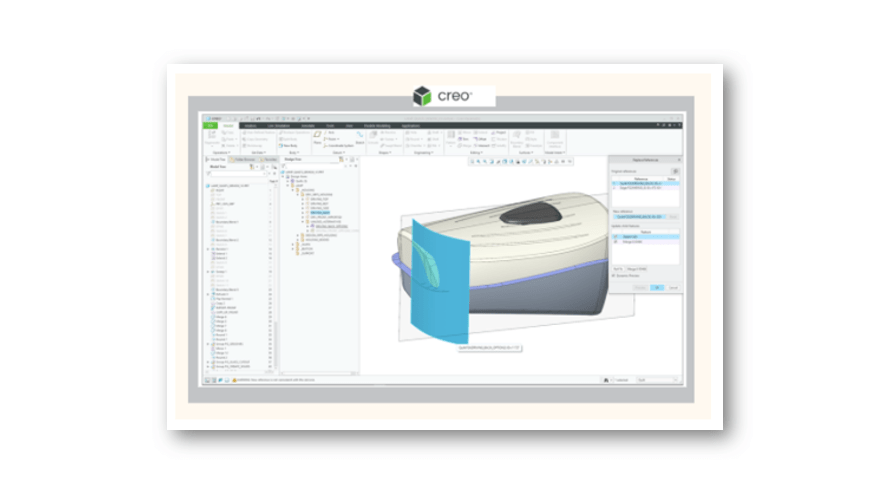

The new Recursive References option in Creo 8, allows users to recursively list potentially impacted references in the Replace References dialog box. Note, this option is only available when you replace quilt references.

When this option is selected, the system identifies the direct child features for reference handling, and also identifies the entities created by these child features that themselves are being used as references. This is done recursively, populating the dialog box with all the entities that might also be affected and require a replacement.

When you select the new Dynamic Preview option, the system automatically triggers regeneration (essentially the Preview and Roll To actions) of the subsequent features when a reference is replaced.

User Interface: Click Model > Operations > Replace References.

Limitation :

The Recursive References option is only available when you replace quilt references.

Punditas AI Advisor for Creo

Punditas AI Advisor provides real-time guidance as you work in the Creo environment. Information on “how to use” a feature in Creo or best practices for working with Creo are presented within context, removing the need to guess or search for such information. Punditas AI driven content helps you leverage Creo to create your designs faster and with confidence. For example searching for “weld dashboard” in Punditas AI displays the following results –

Video Tutorials for Recursive Reference option in Punditas AI

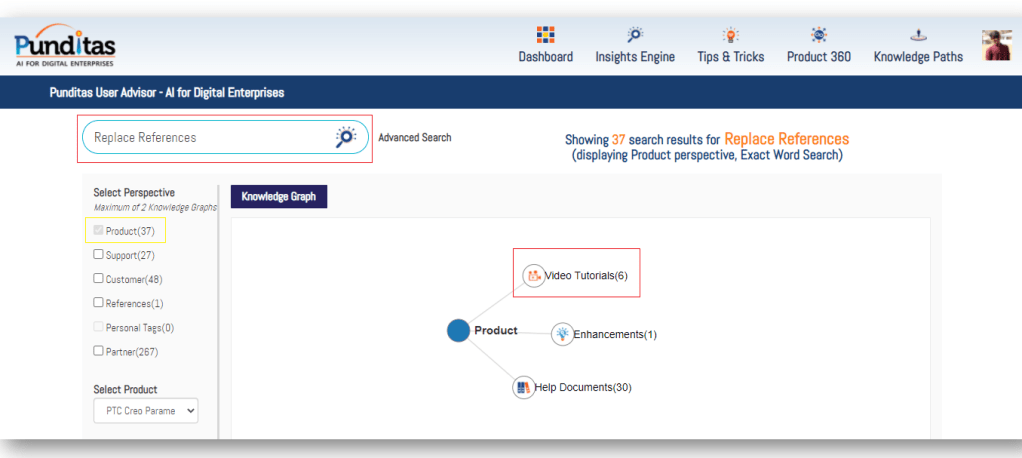

Video Tutorials – Punditas AI Knowledge Graph with Search Results

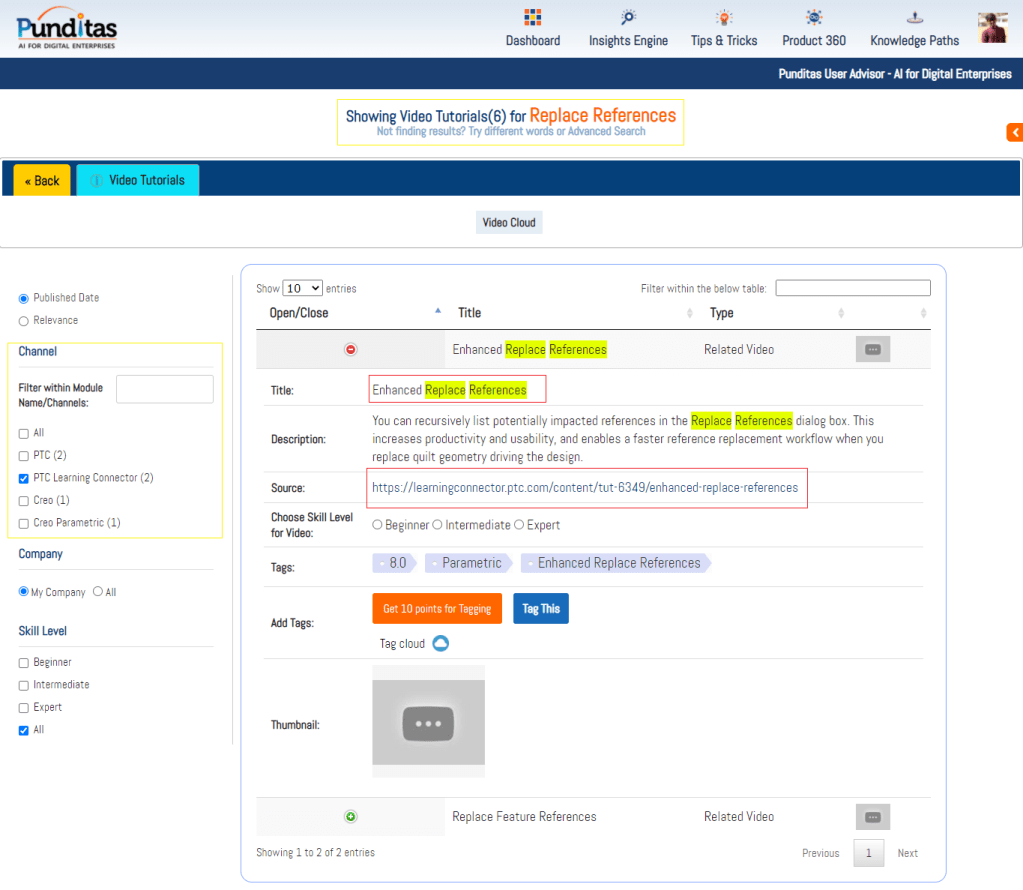

Video Tutorials – Detailed view of search results for Video tutorials

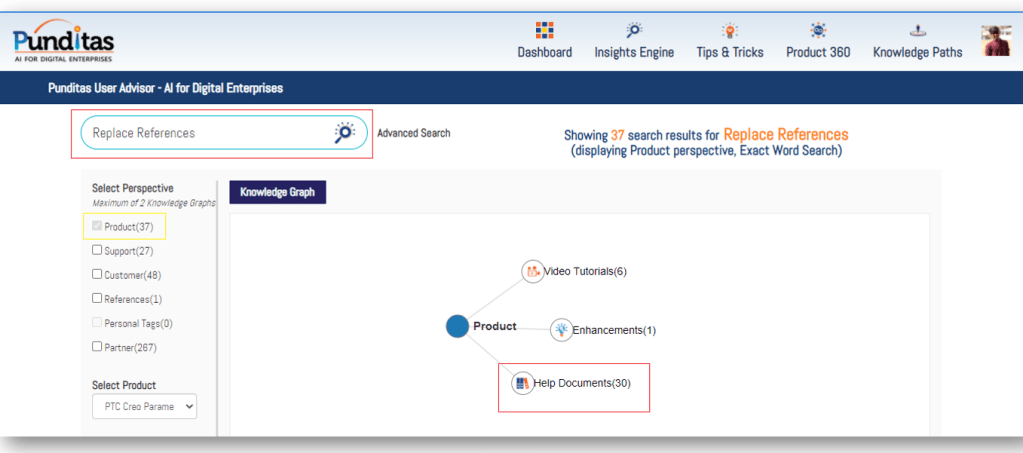

Help Articles for Replace References option in Punditas AI

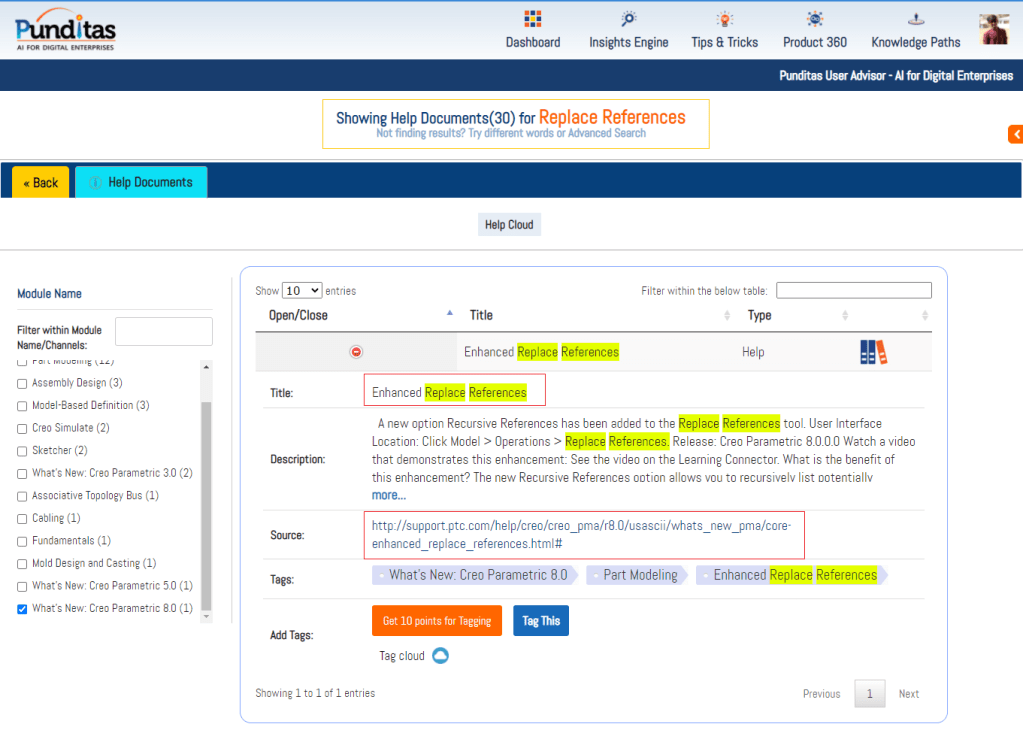

Help Articles – Detailed view of search results for Help Articles

Help Articles – Detailed view of search results for Help Articles

Enhancements for Replace References option in Punditas AI

Enhancements – Detailed view of search results for Enhancements
Enhancements – Detailed view of search results for Enhancements

Check out the Trial or Demo versions of Punditas AI

Demo version of Punditas AI

Signup for a Free Trial of Punditas AI

For more information about Punditas AI Advisor, visit our website at Punditas AI or contact us at contact@punditas.com
