Did you know about improved control of visibility by object type in Creo?

PTC has improved the control of visibility by object type in Part and Assembly modes by adding 2 commands – Show All or Show All Except

There are 3 ways to access these new, additional commands for Showing and Hiding objects

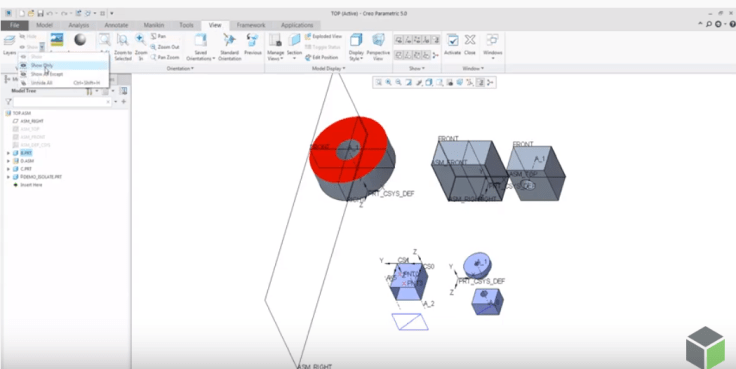

1. From View Tab

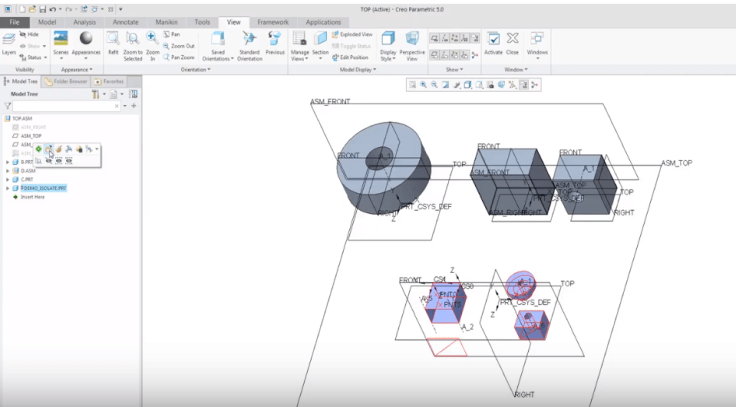

2. Mini toolbar from graphics area

3. From Model Tree

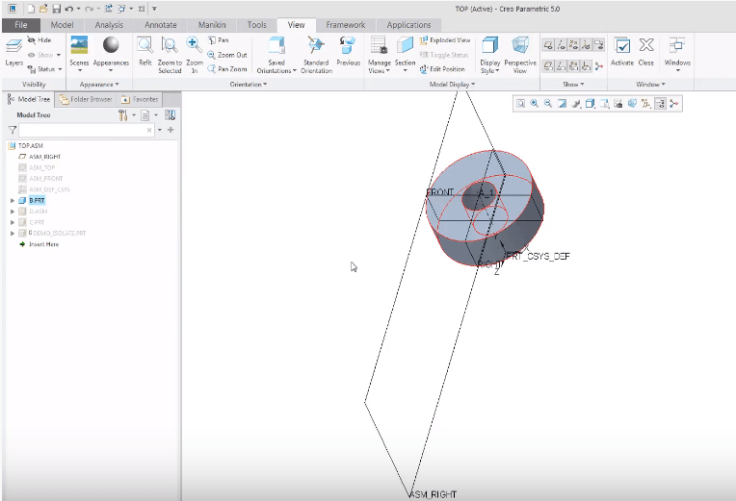

Show Only—Shows the selected object and other objects of the same type are hidden



Show All Except—Hides the selected object but objects of the same type appear



















About Punditas

Punditas delivers Artificial Intelligence(AI) driven content for PTC Creo Parametric and other Enterprise Application Softwares. Punditas AI engine taps into 100’s of internal & external repositories for Creo Parametric to Discover, Curate & Deliver pertinent Tips, Tricks, Tutorials, Best Practices, etc. up to 5 perspectives of content based on each Creo Users style and preference. To learn more about Punditas, visit https://www.punditas.com

Content source: PTC
