What is ISO fillet weld feature in PTC Creo?

A new Z1xZ2 dimensioning scheme has been added to the Fillet Weld feature. This enhancement enables a compliance with the ISO standard. It is easier to apply intermittent and staggered welds and improves the usability of ISO fillet welds. It allows you to define each leg length by its value, contains labels with clearer definitions.

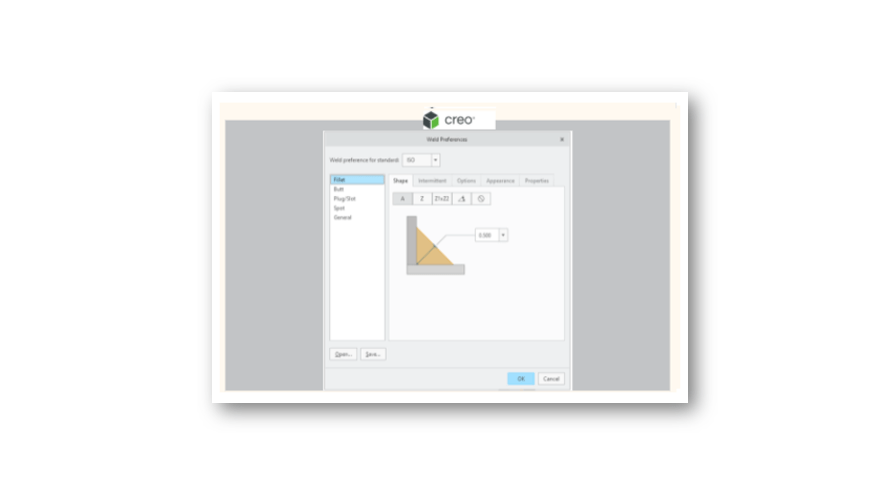

The Shape tab in the Weld Preferences dialog box contains new diagrams. A new Intermittent tab has been added for the fillet and groove in both ANSI and ISO standards.

A new parameter DEFAULT_SCHEME added for fillet weld and LEG_LENGTH_2 to store the value of the Z2 dimension in the Z1xZ2 dimensioning scheme. The default value for the A dimensioning scheme is greater than zero.

User Interface: Click Applications > Welding > Fillet Weld

Punditas AI Advisor for Creo

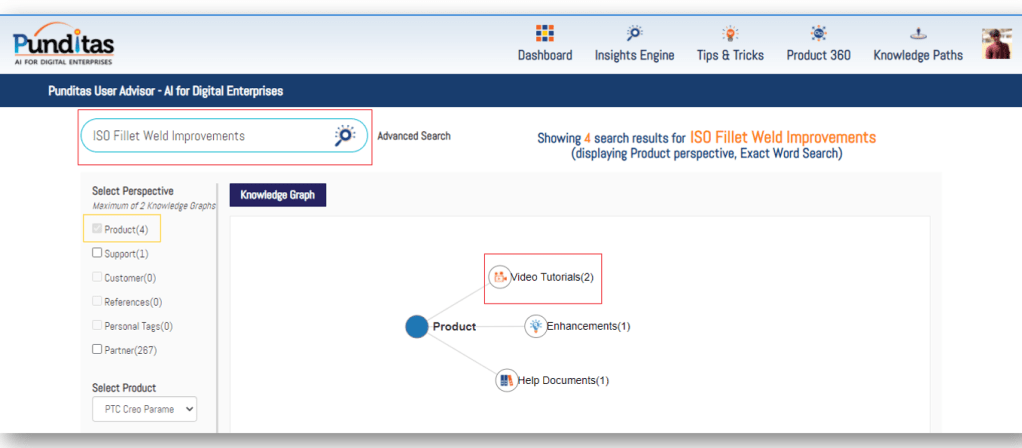

Punditas AI Advisor provides real-time guidance as you work in the Creo environment. Information on “how to use” a feature in Creo or best practices for working with Creo are presented within context, removing the need to guess or search for such information. Punditas AI driven content helps you leverage Creo to create your designs faster and with confidence. For example searching for “weld dashboard” in Punditas AI displays the following results –

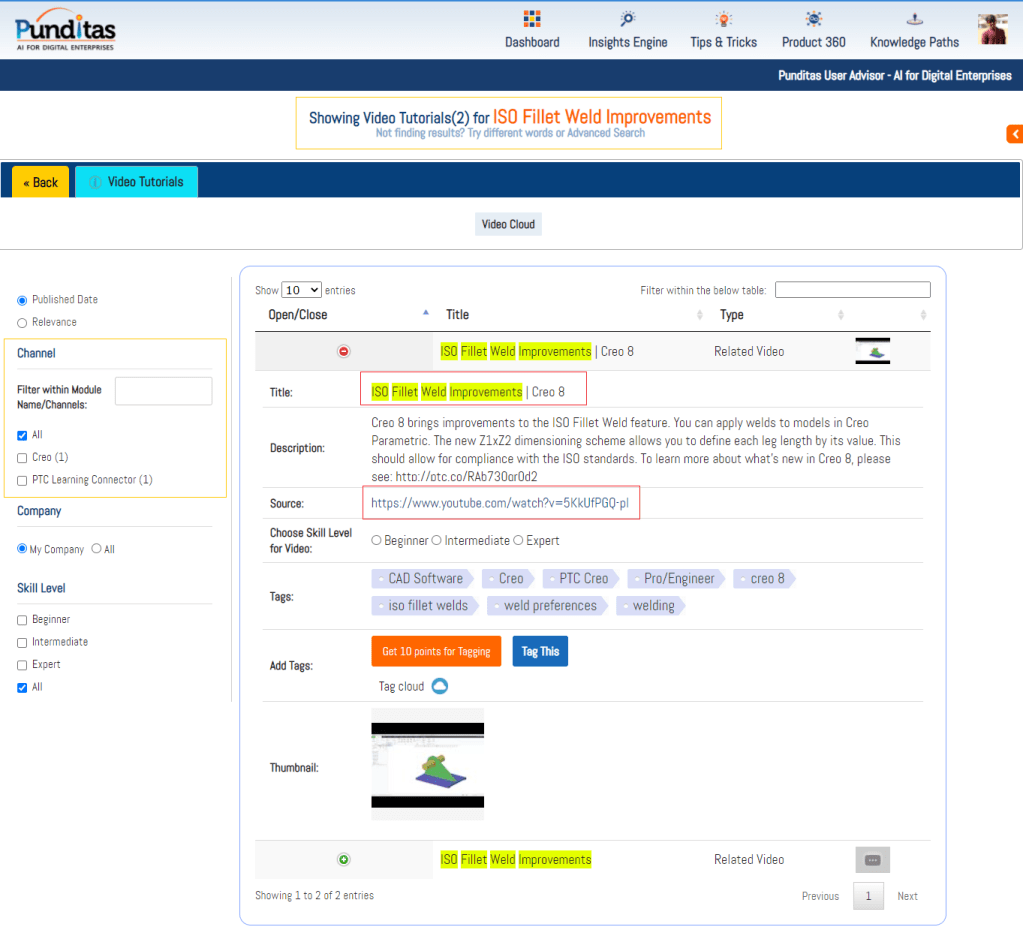

Video Tutorials for ISO Fillet Weld Improvements in Punditas AI

Video Tutorials – Punditas AI Knowledge Graph with Search Results
Video Tutorials – Detailed view of search results for Video tutorials

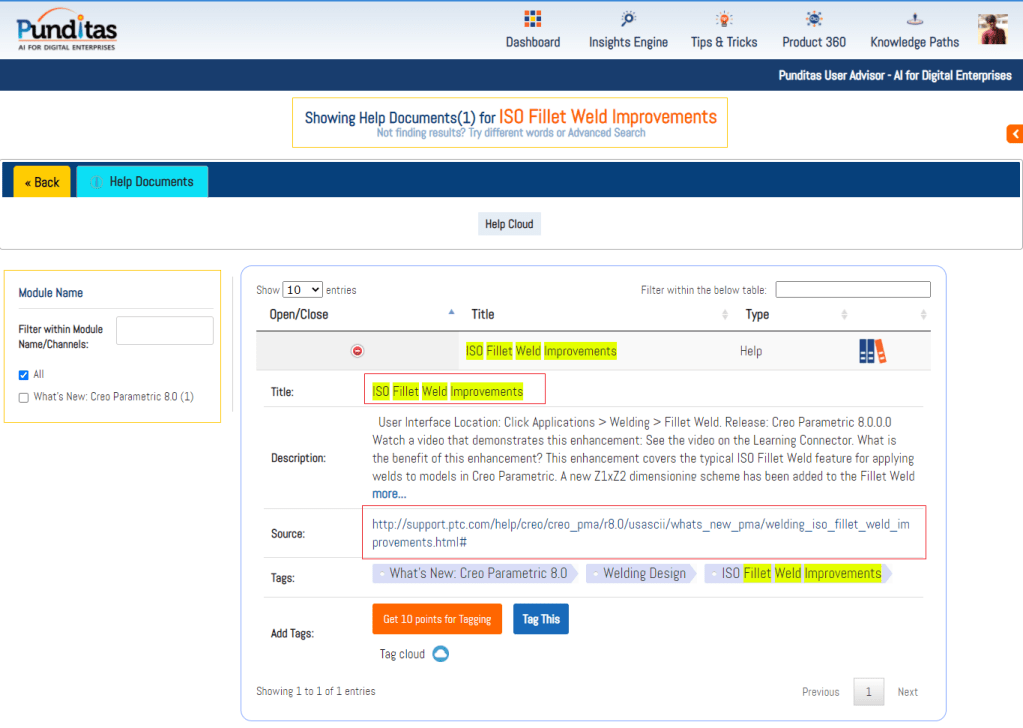

Help Articles for ISO Fillet Weld Improvements in Punditas AI

Help Articles – Detailed view of search results for Help Articles
Help Articles – Detailed view of search results for Help Articles

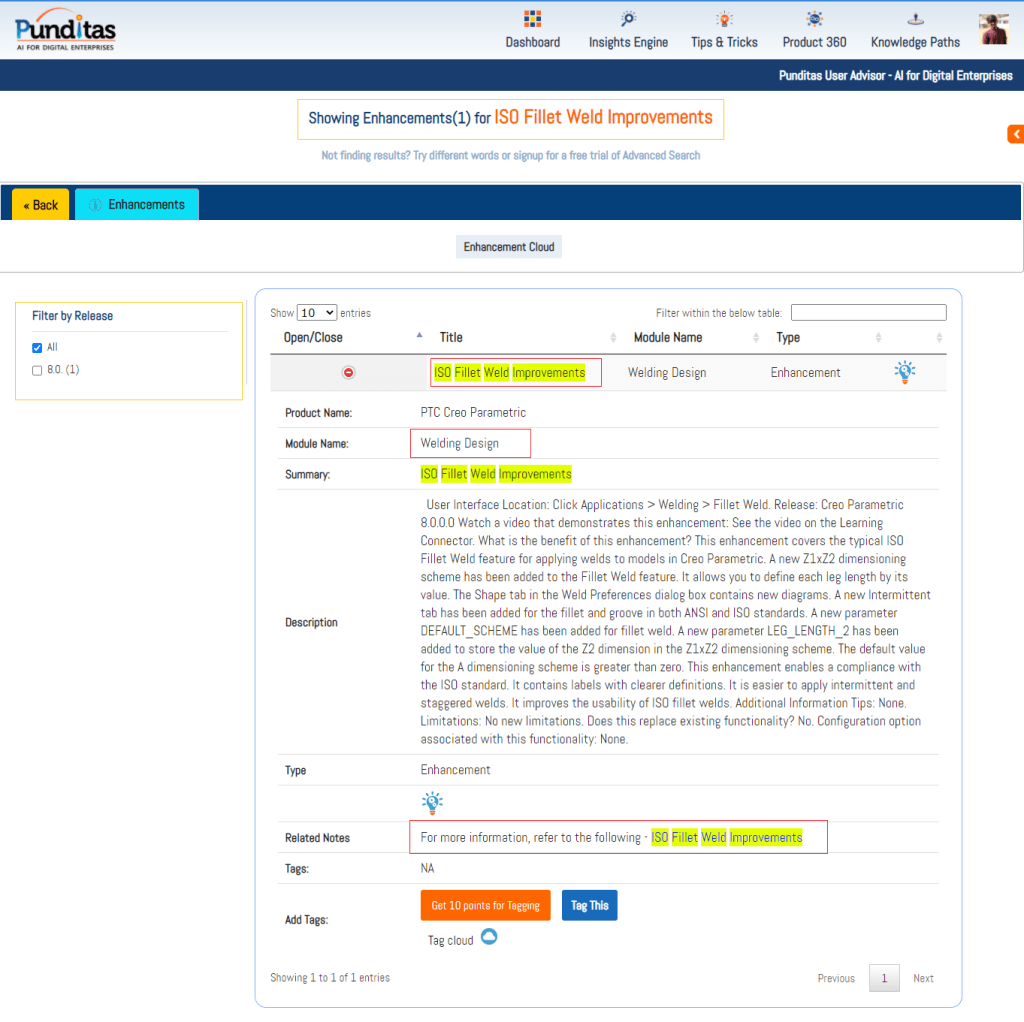

Enhancements for ISO Fillet Weld Improvements in Punditas AI
