How to create straight drilled hole in combination with the tapped, tapered hole section in PTC Creo?

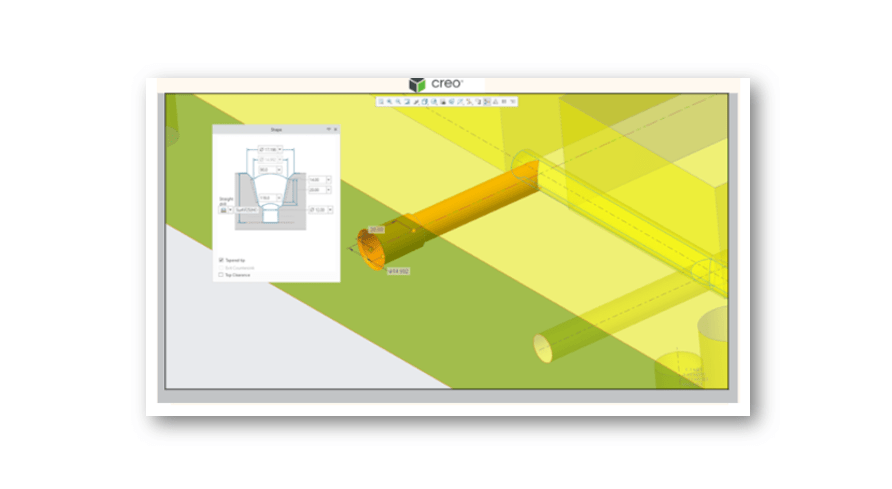

The Hole feature option added for NPT, NPTF, and ISO-7 standard holes in Creo allows you to create a straight drilled hole in combination with the tapped, tapered hole section.

Hole charts (.hol files) are updated to drive thread depth and straight drill diameter.

The depth options for this straight drilled hole section include: BlindTo NextThrough AllThrough UntilTo Selected, and None. The default value is None that represents the same geometry as created by previous Creo Parametric versions. The new Tapered tip check box also provides additional geometric shape options.

Note : When the Tapered tip check box is not selected, the straight drill diameter is automatically calculated based on the tapered hole size and tapered section depth. Hole charts (.hol files) are updated to drive thread depth and straight drill diameter.

User Interface: Click Model > Hole.

Punditas AI Advisor for Creo

Punditas AI Advisor provides real-time guidance as you work in the Creo environment. Information on “how to use” a feature in Creo or best practices for working with Creo are presented within context, removing the need to guess or search for such information. Punditas AI driven content helps you leverage Creo to create your designs faster and with confidence. For example searching for “weld dashboard” in Punditas AI displays the following results –

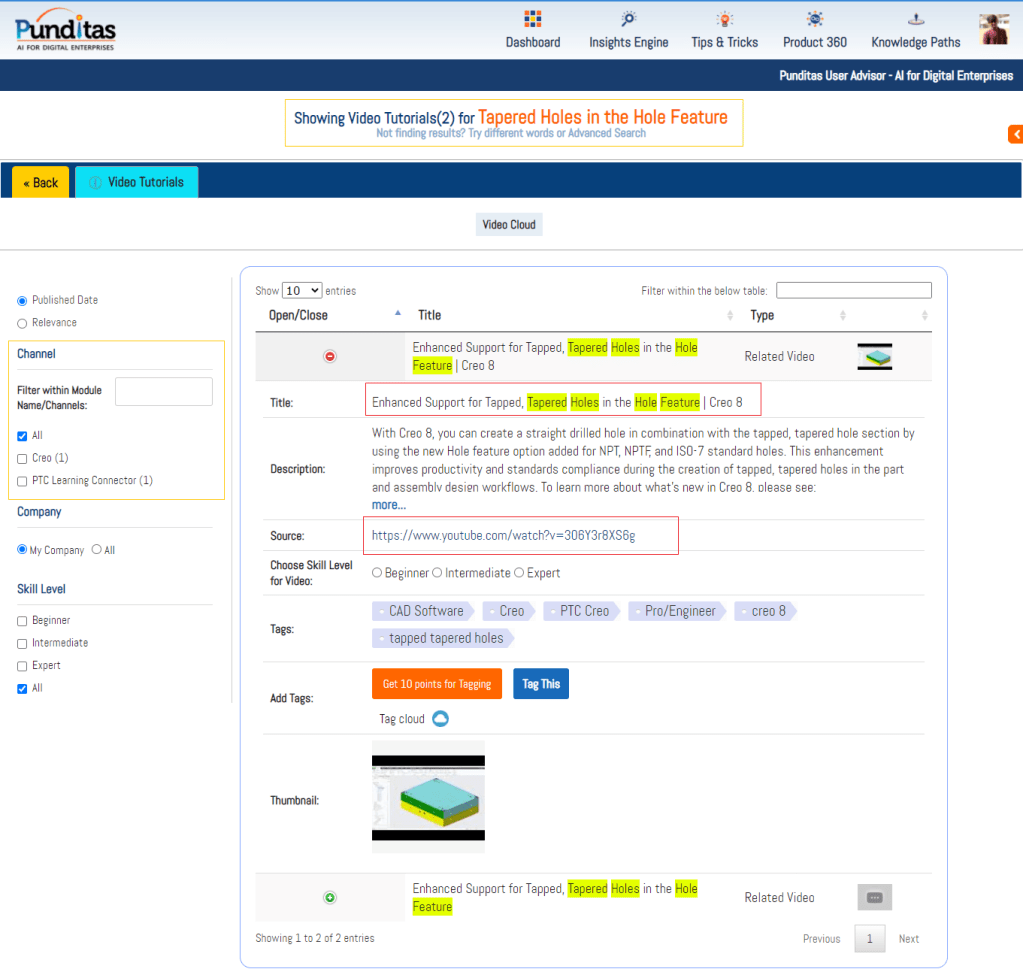

Video Tutorials for “Tapered Holes in the Hole Feature in Punditas AI

Video Tutorials – Punditas AI Knowledge Graph with Search Results
Video Tutorials – Detailed view of search results for Video tutorials

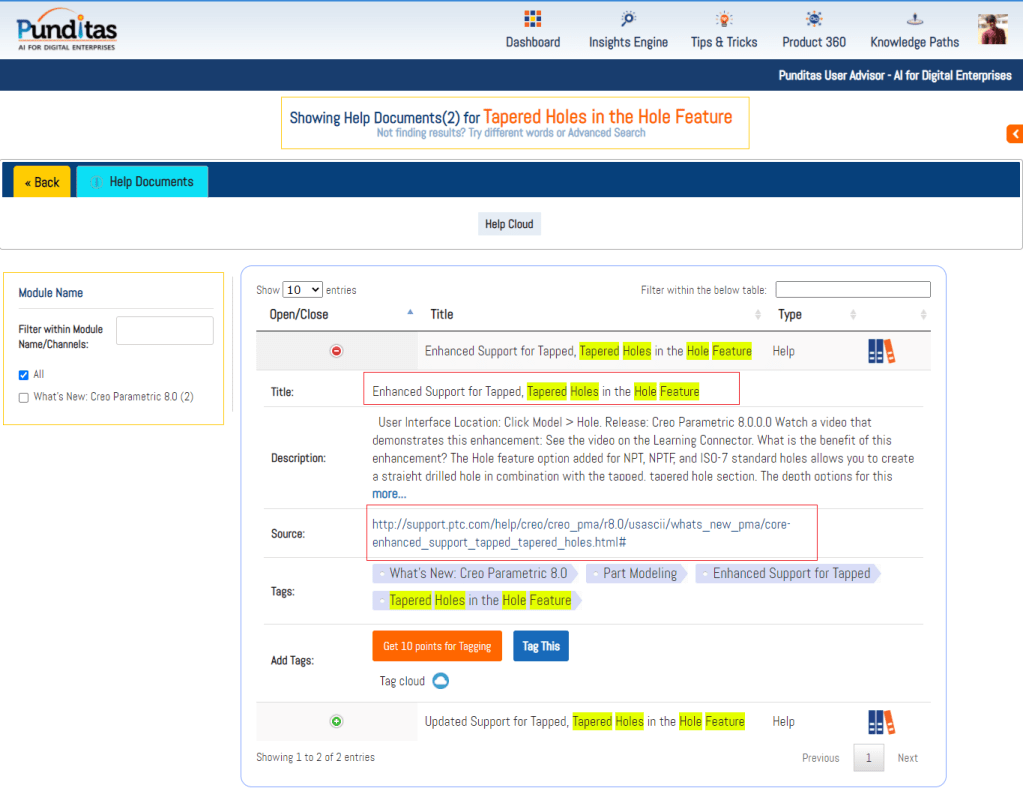

Help Articles for “Tapered Holes in the Hole Feature in Punditas AI
